Description

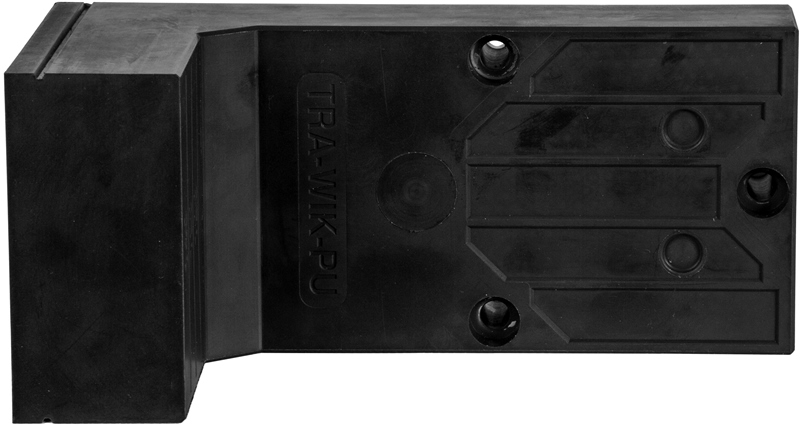

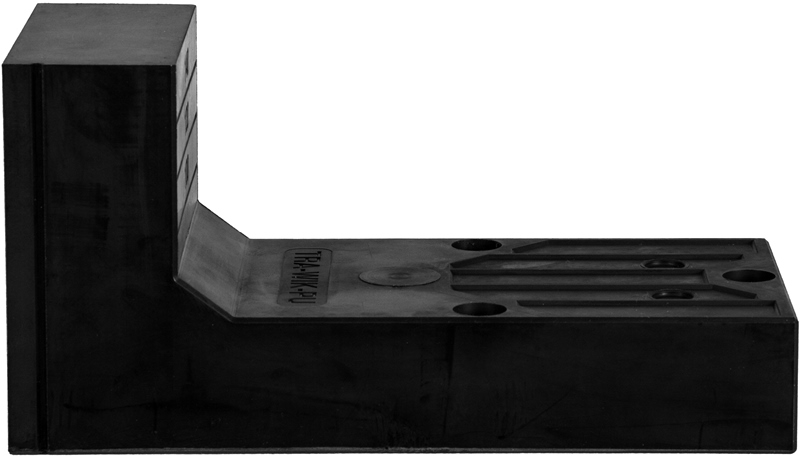

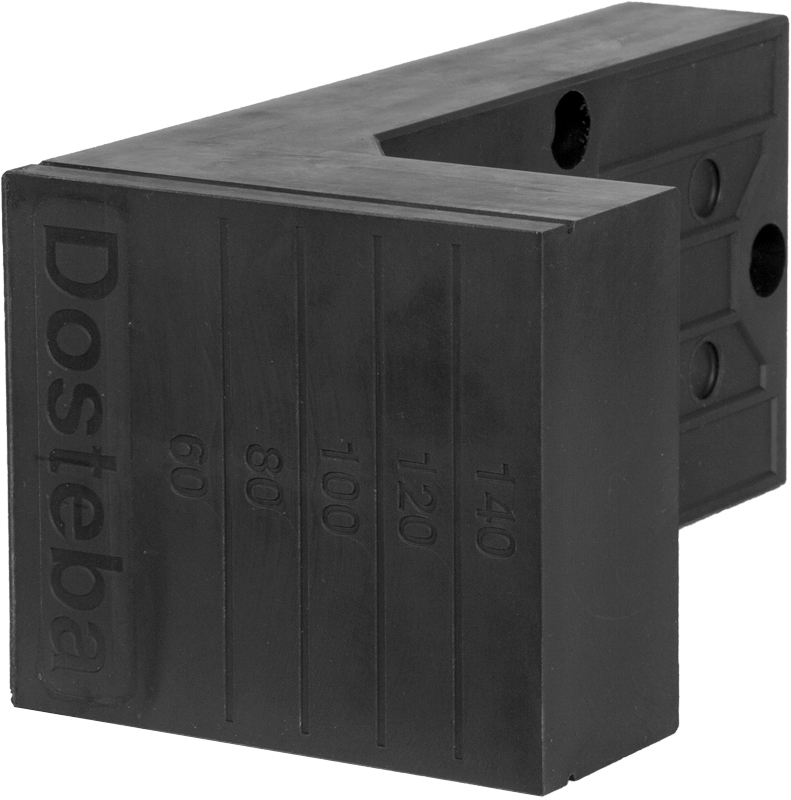

Supporting brackets TRA-WIK®-PU are made of black-coloured, rot-resistant and CFC-free PU-rigid foam plastic (polyurethane) with three embedded washers.
Dimensions
| Base surface: |
280 x 125 mm |
| Types T: |
60 - 300 mm |
| Usable surface area in the reveal: |
100 x 85 / 160 x 85 mm |
| Usable surface area on the façade surface: |
85 x 20 mm |
| Hole distance: |
100 x 100 mm |
| Volumetric weight PU: |
550 kg/m3 |
Fastening material
| Screw-plug: |
SXRL 10 x 120 FUS |
| Bore hole diameter: |
10 mm |
| Min. drilling depth: |
80 mm |
| Min. anchoring depth |
70 mm |
| |
|
| Threaded rod: |
FIS A M8 x 130 |
| Bore hole diameter: |
10 mm |
| Min. drilling depth: |
60 mm |
| Min. anchoring depth |
60 mm |
| |
|
| Threaded rod: |
FIS A M8 x 150 |
| Anchor sleeve: |
FIS H 12 x 85 K |
| Bore hole diameter: |
12 mm |
| Min. drilling depth: |
95 mm |
| Min. anchoring depth |
85 mm |
